T9 Electric Pickup
JAC 3rd Gen Pickup Platform
T9 Electric Pickup
JAC 3rd Gen Pickup Platform
CHARGING RATE (DC)
88kw – 35 min (30%-80%)
WARRANTY
Whichever comes first
- 516Nm Max torque
- 140km/h Max Speed
- 340kmDriving Range

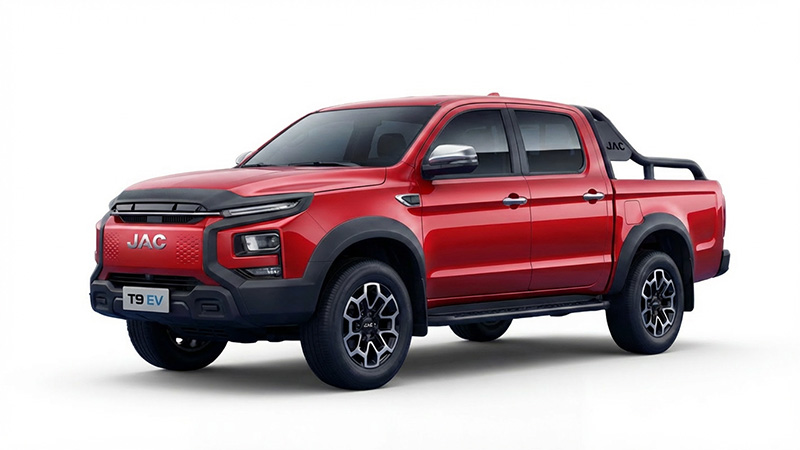

Red Belly

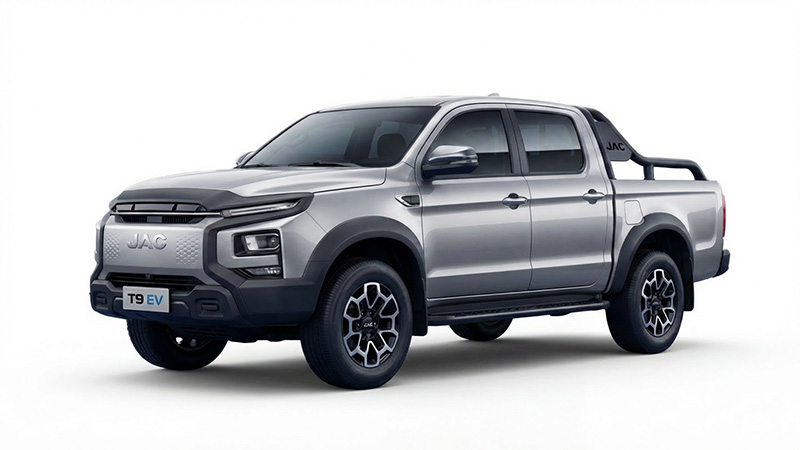

Karak

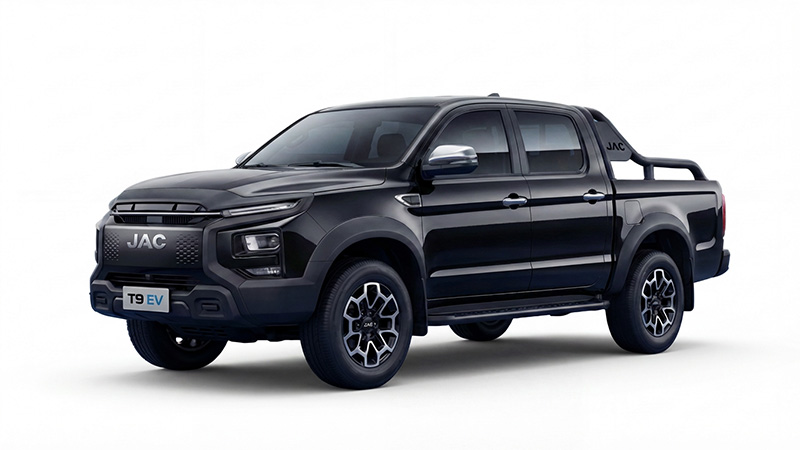

Hammerhead

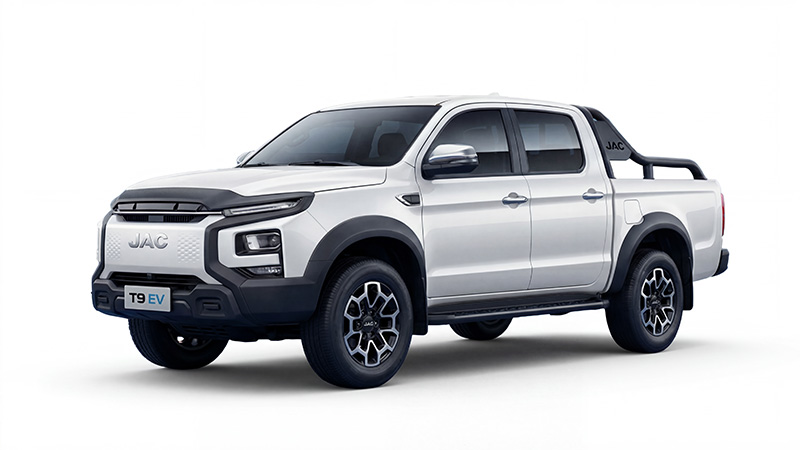

Salt Bush

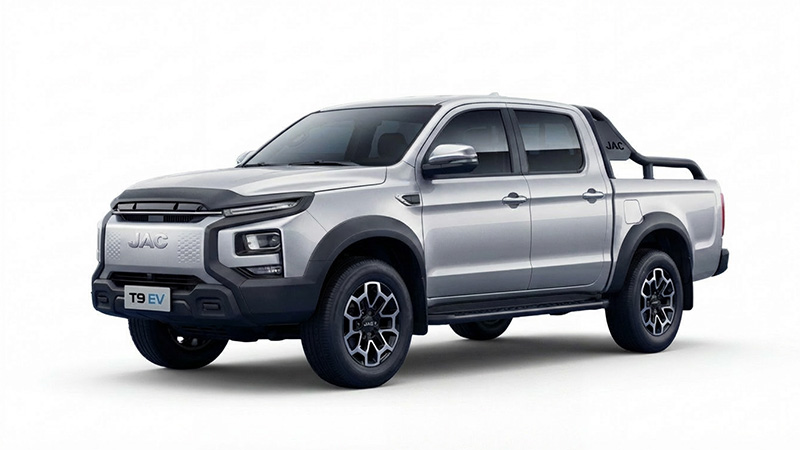

Stratus
Interior
The interior offers a luxurious feel, with a dashboard covered in soft-touch materials and premium leather finishes for added comfort.
Interior Ambient Light
64 Colours
Intelligent Electronic Shift
Normal\Sport\Eco\Snow
ADAS
L2 Advanced Driving Assistance System
Intelligent Cabin
10.4" Touchscreen & 7 Inch Colour Instrument Cluster
Driver Monitoring System

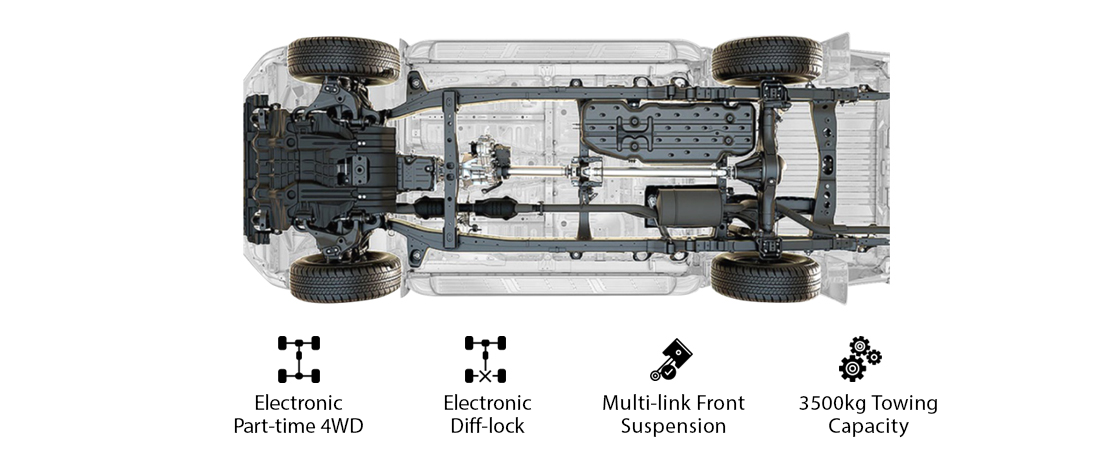

High Strength Bird Cage Body
Lorem ipsum dolor sit amet, consectetur adipiscing eli blandit massa enim. Nullam id varius nunc.
Multi-Layer Anti-Collision Beams
Lorem ipsum dolor sit amet, consectetur adipiscing eli blandit massa enim. Nullam id varius nunc.
SPECIFICATION
- Powertrain
- Drivetrain4×4
- TransmissionIntelligent e-shift
- Front Motors
- Rated Power26 kW
- Rated Torque70 Nm
- Max Torque176 Nm
- Max Power70 kW
- Rear Motors
- Rated Power70 kW
- Rated Torque150 Nm
- Max Torque340 Nm
- Max Power150 kW
- Battery
- Battery TypeCATL LFP
- Battery Energy88.02 kWh
- Charging Time (AC)11 kw – 8.5h (0% – 100%)
- Charging Time (DC)88 kw – 45min (15% – 80%)
- Charging Cable Type (AC Normal)Type 2 – 3 phase
- Charging Cable Type (DC Rapid)CCS2
- Overall Length x Width x Height (mm)5330 x 1965 x 1920
- Cargo Bed Length x Width x Height (mm)1520 x 1590 x 470
- Wheelbase3110 mm
- GVW3260 kg
- Curb Weight2350 kg
- Payload910 kg
- Mini Ground Clearance205 mm
- Mini Turning Radius6.6°
- Approach/Departure Angle27°/21°
- Electronic Hydraulic Power Steering*
- Auto-hold*
- Electronic Parking Brake*
- Aluminium Alloy Rim*
- Spare Tire with Steel Rim*
- Accelerating time (0－100km/h) (s)8.5s
- Max Speed140 km/h
- Max Gradeability30%
- NEDC Range371 km
- CLTC Range400 km
- WLTP Range310 km
- Standard Cargo*
- Cargo Protector*
- Iron Roll Bar*
- Cargo Tie Down Hooks ($)*
- Privacy Glass*
- Iron Side Steps*
- LED Headlamps*
- LED Daytime Running Lamps*
- Spare Tire with Steel Rim*
- LED Tail Lamps*
- Spare Tire with Steel Rim*
- High-mounted Brake Light*
- Front & Rear Fog Lamps*
- Headlamps Levelling*
- Headlamps Automatic Lightening*
- Follow Me Home Function*
- Steering Automatic Lighting*
- Rear Step Bumper*
- Chrome Door Mirror*
- Electrically Adjustable Side Mirror*
- Auto Folding Side Mirror*
- Heated Rear Window*
- Front Grille Blue JAC Font*
- Leather Accented Interior*
- Front Reading Light*
- Rear Reading Light*
- Sunglass Holder*
- Driver & Front Passenger Sun Visors*
- Sun Visor with Illuminated Vanity Mirror*
- Driver’s Boarding Handrail*
- Leather Bound Steering Wheel*
- Auto Folding Side Mirror*
- Multifunction Steering Wheel Controls*
- Cruise Control*
- Steering Wheel Up & Down Adjust*
- Colour Instrument Cluster*
- Power Window*
- Remote Control of Window*
- Automatic Up/Down + Anti-clamp for All Window*
- Manual Anti-glare of Interior Mirror*
- Variable Intermittent Windscreen Wipers*
- Climate Control Air Conditioning*
- Rear Vents*
- Air Supporting Rod of Hood*
- 6-way Driver’s Seat Power Adjustment*
- 4-way Front Passenger’s Seat Manual Adjustment*
- Front Armrest*
- Rear Armrest with Cup Holder*
- 10.4 Inch Touch Screen Entertainment System*
- Apple CarPlay & Android Auto*
- Front USB Port*
- Front 12V Accessory Socket*
- Wireless Charging*
- Rear USB Port*
- Rear Type-C Port*
- Rear 220V Accessory Socket*
- Speakers6
- Anti-lock Braking System (ABS)*
- Electronic Brake Force Distribution (EBD)*
- Brake Override System (BOS)*
- Vehicle Sound for Pedestrians System (VSP)*
- Hill-Start Hold Control (HHC)*
- Hydraulic Brake Assist (HBA)*
- Traction Control System (TCS)*
- Vehicle Dynamics Control (VDC)*
- Electronic Stability Control (ESC)*
- Blind Spot Detection (BSD)*
- Rear Cross Traffic Alert (RCTA)*
- Rear Collision Warning (RCW)*
- Door Open Warning (DOW)*
- Tyre Pressure Monitoring System (TPMS)*
- Driver & Front Passenger Airbags*
- Driver & Front Passenger Side Airbags*
- Driver & Front Passenger Curtain Airbags*
- Front Centre Airbag*
- Front Passenger Seatbelt Height Adjustable*
- Driver & Front Passenger Pre-tensioner Seatbelt*
- 3-point Seatbelt for Rear Outer Seats*
- Rear Middle Seat with 3-point Safety Seatbelt*
- Driver Seatbelt with Alarm System*
- Rear Middle Warning Buzzer*
- Power Window Lock Driver Control*
- Power Door Lock*
- Auto Lock*
- Door Ajar Warning Light*
- Remote Central Locking*
- Smart Entry & Start System*
- ISOFIX*
- Child Safety Lock*
- Auto Unlock After Collision*
- Automatic Power Off Protection After Collision*
- Rear Armrest with Cup Holder*
- Low Temperature Charge Preheating*
